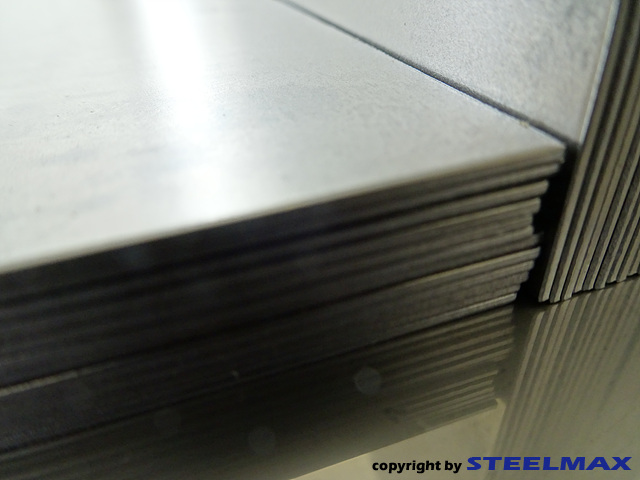

C60S, 1.1121, EN 10132-4, Carbon Spring Steel
STEELMAX Steel Story
C60S, Material Number 1.1121, S60S 는 EN 10132-4
냉간 압연 협폭 강대 (cold-rolled steel strip), 스프링강 규격으로
강판 두께 0.30 mm~3.00 mm 까지의 탄소강과 합금강
(non-alloy and alloy) 15개 종류 중 한 가지입니다.
C60S 는, 열처리와 압연 조건에 따라 부여되는 약호가 있습니다.
Cold Rolled (+CR) — 냉간압연
Annealed (+A) or Annealed and Skin Passed (+LC)
Quenched and Tempering (+QT) 종류가 있습니다.
이외에도 EN 10132-4 스프링 강재는 공급자와 수요자가 합의에 의해
Annealed to achieve spheroidized carbides 인 경우 +AC 약호를 사용합니다.
C60S 는, 기계 부품, 가스켓, 자동차의 클러치와 트랜스 미션 부품. 칼날, 톱,
Scraper, Clips and buckles for seat-belts, 와셔와 스프링 용도입니다.
※ Skin pass (조질 압연 , Temper Rolling)
light reduction cold rolling treatment to obtain the improvement
of appearance, shape, mechanical properties of steel plate and steel strip
For the galvanized steel plate and steel strip, skin pass is
performed for the purpose to make the surface smooth.
냉간 압연 된 강판은 냉간 압연 가공 과정에 의해 강도는 증가하지만,
인성이 감소하는 현상이 있으므로, Annealing (어닐링, 소둔) 열처리
과정으로 강판 내부의 응력 (stress)를 제거한 후, 결정 입자를
세밀하게 하기 위해 가벼운 냉간 압연 (light reduction cold rolling)를
하게 되고, 가벼운 냉간 압연을 조질 압연 이라고 표현합니다.
조질 압연 된 강판은 인성 (Toughness)이 개선됩니다
※ Strip
A rolled material of a rectangular cross-section supplied in coils
usually with slit edges.
※ 구상화어닐링 (球狀化 : Spheroidizing Annealing)
Geometric development of the carbide particles, such as the cementite
platelets, towards a stable spherical form.
Annealing, generally involving prolonged soaking in the region of temperature
Ac1, possibly with oscillations around this temperature, in order to bring about
the spheroidization of the precipitated carbides.
석출된 탄화물의 형태가 구상이 되도록, Ac1 온도 영역에서, 가능하면 그 온도
상하로 변경하면서, 장시간 유지(균열화)하여, 구상화 처리가 되게 하는
어닐링 (풀림) 열처리를 말합니다.
구상화 어닐링을 하는 이유는 강도, 경도는 조금 낮아지지만 인성을 증가 시키고,
강인성 증가, 가공 성질을 좋게 하며, 담금질에 의한 균열 방지 효과가 있기 때문입니다.
주로, 공구강, 베어링강과 같은 고탄소강에서 구상화 열처리를 합니다.
EN 10132-4, C60S, 1.1211 | ||
Chemical composition (%) | Carbon (C) | 0.57~0.65 |
Silicon (Si) | 0.15~0.35 | |
Manganese (Mn) | 0.60~0.90 | |
Phosphorus (P) | 0.025 max | |
Sulfur (S) | 0.025 max | |
Chromium (Cr) | 0.40 max | |
Molybdenum (Mo) | 0.10 max | |
Nickel (Ni) | 0.40 max | |
Annealed (+A) or Annealed and Skin Pass (+LC) | Yield strength (MPa) | 495 max |
Tensile strength (MPa) | 620 min | |
Elongation (%) | 17 min | |
Hardness (HV) | 195 max | |
Cold Rolled (+CR) | Tensile strength (MPa) | 1100 max |
Hardness (HV) | 305 max | |
Quenched and Tempered (+QT) | Tensile strength (MPa) | 1150~1750 |
Hardness (HV) | 345~530 |
EN 10132-4 | Hardness(HV) in the QT Condition (guidance) | |||||
0.30≤0.50 | 0.50≤0.75 | 0.75≤1.00 | 1.00≤1.50 | 1.50≤2.00 | 2.00≤3.00 | |
C60S/1.1211 | 485~535 | 465~515 | 455~505 | 445~495 | 425~475 | 415~465 |
C67S/1.1231 | 485~535 | 465~515 | 455~505 | 445~495 | 425~475 | 415~465 |
C75S/1.1248 | 520~570 | 500~550 | 480~530 | 465~515 | 440~490 | 435~485 |
